product Category: Residential Solar Energy Storage

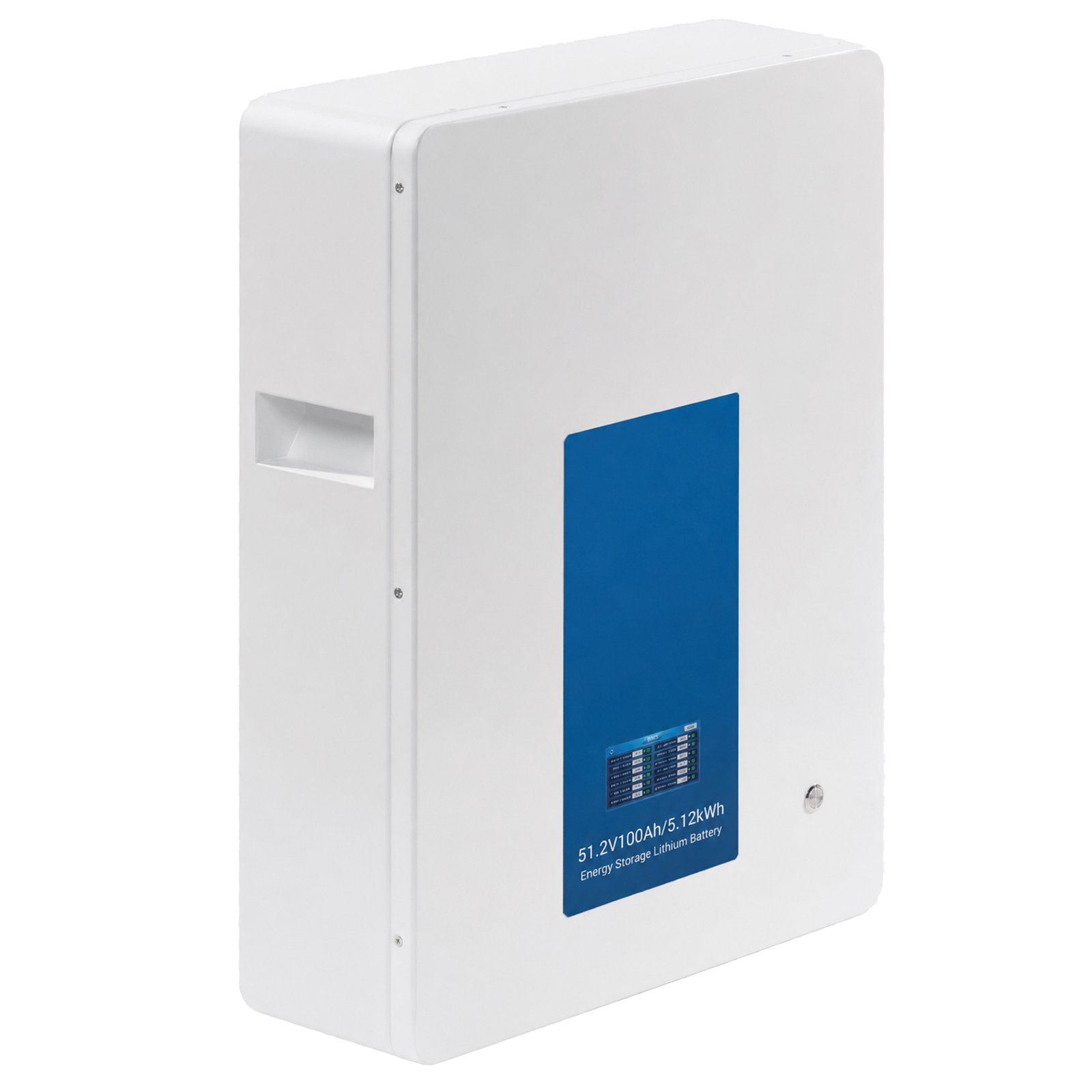

  • CNBC-51-100 51.2V 5.12kWh LFP Wall-Mounted Energy Storage Battery

    CNBC-51-100 51.2V 5.12kWh LFP Wall-Mounted Energy Storage Battery

    Product Overview

    CNBC-51-100 is a 51.2V 5.12kWh LFP wall-mounted energy storage battery for residential solar and backup.

    Product Features

    • Wall-mounted LFP battery design: Compact wall-mounted structure for space-saving home installation.
    • Space-saving installation: Designed for easy wall mounting in tight spaces.
    • BMS protection: Built-in BMS for voltage, temperature and current monitoring.
    • Natural cooling: Passive thermal management for quiet indoor operation.
    • Parallel expansion support: Supports parallel connection of multiple units.
    • Suitable for home solar storage and small backup power systems.

    Technical Specifications

    Model CNBC-51-100
    Spec 51.2V100Ah
    Config 16S1P
    Capacity 5.12kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 100A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×585×170mm
    Weight 46kg

    Applications

    • Home solar
    • Backup power
    • Off-grid
    • Small shop backup

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNBC-48-100 48V 4.8kWh LFP Wall-Mounted Energy Storage Battery

    CNBC-48-100 48V 4.8kWh LFP Wall-Mounted Energy Storage Battery

    Product Overview

    CNBC-48-100 is a 48V 4.8kWh LFP wall-mounted energy storage battery for residential solar and backup power.

    Product Features

    • Wall-mounted LFP battery design: Compact wall-mounted structure for space-saving home installation.
    • Space-saving installation: Designed for easy wall mounting in tight spaces.
    • BMS protection: Built-in BMS for voltage, temperature and current monitoring.
    • Natural cooling: Passive thermal management for quiet indoor operation.
    • Parallel expansion support: Supports parallel connection of multiple units.
    • Suitable for home solar storage and small backup power systems.

    Technical Specifications

    Model CNBC-48-100
    Spec 48V100Ah
    Config 15S1P
    Capacity 4.8kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 40.5-54VDC
    Std Voltage 48VDC
    Max Charge 100A
    Max Charge V 54V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×585×170mm
    Weight 42kg

    Applications

    • Home solar
    • Backup power
    • Off-grid
    • Small shop backup

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNBC-51-50 51.2V 2.56kWh LFP Wall-Mounted Energy Storage Battery

    CNBC-51-50 51.2V 2.56kWh LFP Wall-Mounted Energy Storage Battery

    Product Overview

    CNBC-51-50 is a 51.2V 2.56kWh LFP wall-mounted energy storage battery for residential solar storage and backup.

    Product Features

    • Wall-mounted LFP battery design: Compact wall-mounted structure for space-saving home installation.
    • Space-saving installation: Designed for easy wall mounting in tight spaces.
    • BMS protection: Built-in BMS for voltage, temperature and current monitoring.
    • Natural cooling: Passive thermal management for quiet indoor operation.
    • Parallel expansion support: Supports parallel connection of multiple units.
    • Suitable for home solar storage and small backup power systems.

    Technical Specifications

    Model CNBC-51-50
    Spec 51.2V50Ah
    Config 16S1P
    Capacity 2.56kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 50A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×460×170mm
    Weight 30kg

    Applications

    • Home solar storage
    • Backup power
    • Off-grid
    • Telecom backup

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNBC-24-100 25.6V 2.56kWh LFP Wall-Mounted Energy Storage Battery

    CNBC-24-100 25.6V 2.56kWh LFP Wall-Mounted Energy Storage Battery

    Product Overview

    CNBC-24-100 is a 25.6V 2.56kWh LFP wall-mounted energy storage battery for residential solar storage and backup power.

    Product Features

    • Wall-mounted LFP battery design: Compact wall-mounted structure for space-saving home installation.
    • Space-saving installation: Designed for easy wall mounting in tight spaces.
    • BMS protection: Built-in BMS for voltage, temperature and current monitoring.
    • Natural cooling: Passive thermal management for quiet indoor operation.
    • Parallel expansion support: Supports parallel connection of multiple units.
    • Suitable for home solar storage and small backup power systems.

    Technical Specifications

    Model CNBC-24-100
    Spec 25.6V100Ah
    Config 8S1P
    Capacity 2.56kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 20-29.2VDC
    Std Voltage 25.6VDC
    Max Charge 100A
    Max Charge V 29.2V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×460×170mm
    Weight 26.5kg

    Applications

    • Home solar storage
    • Backup power
    • Off-grid systems
    • Telecom backup

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

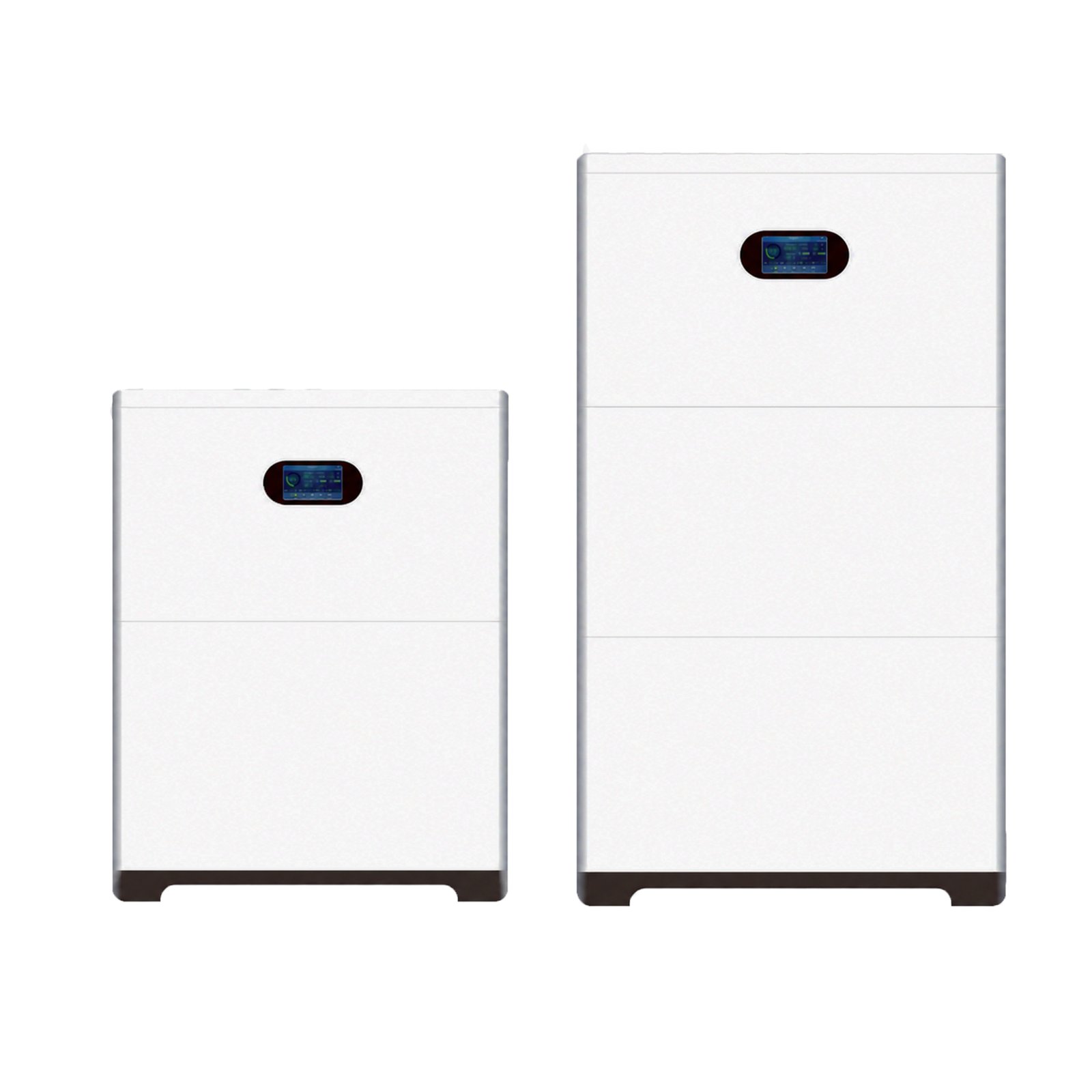

  • CNLC-15 51.2V 15.36kWh LFP Vertical Home Energy Storage Battery

    CNLC-15 51.2V 15.36kWh LFP Vertical Home Energy Storage Battery

    Product Overview

    CNLC-15 is a 51.2V 15.36kWh LFP vertical home energy storage battery for high-capacity residential solar systems and small commercial backup.

    Product Features

    • Vertical LFP battery design: Space-saving vertical structure for home installation.
    • Long cycle life: Designed for >6000 cycles under specified test conditions.
    • BMS protection: Built-in battery management system for safe operation.
    • Natural cooling: Passive thermal management for quiet operation.
    • Parallel expansion support: Supports parallel connection of multiple units.
    • Suitable for residential solar storage and backup power.

    Technical Specifications

    Model CNLC-15
    Product Spec 51.2V300Ah
    Battery Capacity 15.36kWh
    Standard Discharge 140A
    Max Discharge 140A
    Voltage Range 43.2-57.6VDC
    Standard Voltage 51.2VDC
    Max Charge Current 140A
    Max Charge Voltage 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Operating Temp 0°C to +40°C
    Protection IP20
    Cooling Natural Cooling
    Communication RS485/RS232/CAN
    Size 520 × 820 × 280 mm
    Weight 137 kg

    Applications

    • High-capacity residential solar
    • Villa and farm backup
    • Small commercial ESS
    • Microgrid storage

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNLC-10 51.2V 10.24kWh LFP Vertical Home Energy Storage Battery

    CNLC-10 51.2V 10.24kWh LFP Vertical Home Energy Storage Battery

    Product Overview

    CNLC-10 is a 51.2V 10.24kWh LFP vertical energy storage battery for larger home solar systems and off-grid backup.

    Product Features

    • Vertical LFP battery design: Space-saving vertical structure for home installation.
    • Long cycle life: Designed for >6000 cycles under specified test conditions.
    • BMS protection: Built-in battery management system for safe operation.
    • Natural cooling: Passive thermal management for quiet operation.
    • Parallel expansion support: Supports parallel connection of multiple units.
    • Suitable for residential solar storage and backup power.

    Technical Specifications

    Model CNLC-10
    Product Spec 51.2V200Ah
    Battery Capacity 10.24kWh
    Standard Discharge 100A
    Max Discharge 105A
    Voltage Range 43.2-57.6VDC
    Standard Voltage 51.2VDC
    Max Charge Current 105A
    Max Charge Voltage 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Operating Temp 0°C to +40°C
    Protection IP20
    Cooling Natural Cooling
    Communication RS485/RS232/CAN
    Size 550 × 986 × 170 mm
    Weight 85 kg

    Applications

    • Residential solar storage
    • Large home backup
    • Small commercial backup
    • Microgrid backup

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNLC-5 51.2V 5.12kWh LFP Vertical Home Energy Storage Battery

    CNLC-5 51.2V 5.12kWh LFP Vertical Home Energy Storage Battery

    Product Overview

    CNLC-5 is a 51.2V 5.12kWh LFP vertical home energy storage battery designed for residential solar energy storage, backup power and small off-grid systems.

    Product Features

    • Vertical LFP battery design: Space-saving vertical structure for home installation.
    • Long cycle life: Designed for >6000 cycles under specified test conditions.
    • BMS protection: Built-in battery management system for safe operation.
    • Natural cooling: Passive thermal management for quiet operation.
    • Parallel expansion support: Supports parallel connection of multiple units.
    • Suitable for residential solar storage and backup power.

    Technical Specifications

    Model CNLC-5
    Product Spec 51.2V100Ah
    Battery Capacity 5.12kWh
    Standard Discharge 50A
    Max Discharge 100A
    Voltage Range 43.2-57.6VDC
    Standard Voltage 51.2VDC
    Max Charge Current 50A
    Max Charge Voltage 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Operating Temp 0°C to +40°C
    Protection IP20
    Cooling Natural Cooling
    Communication RS485/RS232/CAN
    Size 370 × 600 × 160 mm
    Weight 45 kg

    Applications

    • Residential solar storage
    • Home backup power
    • Small off-grid systems
    • Villas and rural households

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNGC-50 50kW 107kWh Integrated Solar-Storage LFP ESS Cabinet

    CNGC-50 50kW 107kWh Integrated Solar-Storage LFP ESS Cabinet

    Product Overview

    CNGC-50 is a 50kW/107kWh integrated solar-storage LFP ESS cabinet combining battery system, inverter, BMS, EMS, thermal management and fire protection for commercial and industrial solar energy storage, peak shaving and backup power applications.

    Product Features

    • Integrated solar-storage cabinet: Combines LFP battery, inverter, BMS, EMS, thermal management and fire protection.
    • Grid-connected and off-grid hybrid operation: Supports grid-connected, off-grid and hybrid switching for flexible energy management.
    • High system efficiency: Up to 97% system efficiency with scalable power from 20kW to 50kW.
    • PV-ready design: Supports optional PV module integration for solar-plus-storage projects.
    • Local control interface: Built-in local touchscreen for system monitoring and configuration.
    • IP54 outdoor cabinet: Suitable for commercial and industrial outdoor installation.
    • Modular PACK design: Scalable LFP battery configuration for different capacity requirements.

    Technical Specifications

    Model CNGC-50
    System Specification 50kW / 107kWh
    System Battery Voltage 716V
    Battery Voltage Range 582-806V DC
    Battery Type LFP 3.2V / 150Ah
    Single PACK Capacity 102.4V150Ah / 15.36kWh
    System PACK Quantity 7PCS
    System Total Energy 107kWh
    Inverter Rated Power 50kW
    Max PV Input Power 65kW
    Charge/Discharge Rate >0.5C
    Rated Grid Voltage 380V AC
    Grid Frequency 50/60Hz ±5Hz
    Battery Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Charge/Discharge Switching Time ≤0.5s
    System Efficiency up to 97%, DOD 90%
    Thermal Management Intelligent air cooling
    Fire Protection PACK-level aerosol / Novec 1230
    Control Local
    Operation Mode Grid-connected / off-grid / hybrid
    Communication CAN / RS485 / WiFi
    Access Mode AC side connection / PV module optional
    Operating Temperature 0°C to +50°C
    Storage Temperature -20°C to +60°C
    Protection Grade IP54
    Dimensions 1328 × 1445 × 1960 mm
    Weight approx. 1200 kg

    Applications

    • Solar self-consumption
    • Commercial and industrial ESS
    • Peak shaving and load shifting
    • Microgrid backup
    • Hybrid solar-storage projects
    • Industrial park energy storage

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNGC-30 30kW 61.44kWh Integrated Solar-Storage LFP ESS Cabinet

    CNGC-30 30kW 61.44kWh Integrated Solar-Storage LFP ESS Cabinet

    Product Overview

    CNGC-30 is a 30kW/61.44kWh integrated solar-storage LFP ESS cabinet combining battery system, inverter, BMS, EMS, thermal management and fire protection for commercial and residential solar energy storage, backup power and microgrid applications.

    Product Features

    • Integrated solar-storage cabinet: Combines LFP battery, inverter, BMS, EMS, thermal management and fire protection.
    • Grid-connected and off-grid hybrid operation: Supports grid-connected, off-grid and hybrid switching for flexible energy management.
    • High system efficiency: Up to 97% system efficiency with scalable power from 20kW to 50kW.
    • PV-ready design: Supports optional PV module integration for solar-plus-storage projects.
    • Local control interface: Built-in local touchscreen for system monitoring and configuration.
    • IP54 outdoor cabinet: Suitable for commercial and industrial outdoor installation.
    • Modular PACK design: Scalable LFP battery configuration for different capacity requirements.

    Technical Specifications

    Model CNGC-30
    System Specification 30kW / 61.44kWh
    System Battery Voltage 614V
    Battery Voltage Range 490-690V DC
    Battery Type LFP 3.2V / 100Ah
    Single PACK Capacity 102.4V100Ah / 10.24kWh
    System PACK Quantity 6PCS
    System Total Energy 61.44kWh
    Inverter Rated Power 30kW
    Max PV Input Power 39kW
    Charge/Discharge Rate >0.5C
    Rated Grid Voltage 380V AC
    Grid Frequency 50/60Hz ±5Hz
    Battery Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Charge/Discharge Switching Time ≤0.5s
    System Efficiency up to 97%, DOD 90%
    Thermal Management Intelligent air cooling
    Fire Protection PACK-level aerosol / Novec 1230
    Control Local
    Operation Mode Grid-connected / off-grid / hybrid
    Communication CAN / RS485 / WiFi
    Access Mode AC side connection / PV module optional
    Operating Temperature 0°C to +50°C
    Storage Temperature -20°C to +60°C
    Protection Grade IP54
    Dimensions 1175 × 1260 × 1710 mm
    Weight approx. 950 kg

    Applications

    • Solar self-consumption
    • Commercial and industrial ESS
    • Peak shaving and load shifting
    • Microgrid backup
    • Hybrid solar-storage projects
    • Residential community energy storage

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNGC-20 20kW 51.2kWh Integrated Solar-Storage LFP ESS Cabinet

    CNGC-20 20kW 51.2kWh Integrated Solar-Storage LFP ESS Cabinet

    Product Overview

    CNGC-20 is a 20kW/51.2kWh integrated solar-storage LFP ESS cabinet combining battery system, inverter, BMS, EMS, thermal management and fire protection for commercial and residential solar energy storage, backup power and microgrid applications.

    Product Features

    • Integrated solar-storage cabinet: Combines LFP battery, inverter, BMS, EMS, thermal management and fire protection.
    • Grid-connected and off-grid hybrid operation: Supports grid-connected, off-grid and hybrid switching for flexible energy management.
    • High system efficiency: Up to 97% system efficiency with scalable power from 20kW to 50kW.
    • PV-ready design: Supports optional PV module integration for solar-plus-storage projects.
    • Local control interface: Built-in local touchscreen for system monitoring and configuration.
    • IP54 outdoor cabinet: Suitable for commercial and industrial outdoor installation.
    • Modular PACK design: Scalable LFP battery configuration for different capacity requirements.

    Technical Specifications

    Model CNGC-20
    System Specification 20kW / 51.2kWh
    System Battery Voltage 512V
    Battery Voltage Range 432-576V DC
    Battery Type LFP 3.2V / 100Ah
    Single PACK Capacity 102.4V100Ah / 10.24kWh
    System PACK Quantity 5PCS
    System Total Energy 51.2kWh
    Inverter Rated Power 20kW
    Max PV Input Power 26kW
    Charge/Discharge Rate >0.5C
    Rated Grid Voltage 380V AC
    Grid Frequency 50/60Hz ±5Hz
    Battery Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Charge/Discharge Switching Time ≤0.5s
    System Efficiency up to 97%, DOD 90%
    Thermal Management Intelligent air cooling
    Fire Protection PACK-level aerosol / Novec 1230
    Control Local
    Operation Mode Grid-connected / off-grid / hybrid
    Communication CAN / RS485 / WiFi
    Access Mode AC side connection / PV module optional
    Operating Temperature 0°C to +50°C
    Storage Temperature -20°C to +60°C
    Protection Grade IP54
    Dimensions 1175 × 1260 × 1510 mm
    Weight approx. 850 kg

    Applications

    • Solar self-consumption
    • Commercial and industrial ESS
    • Peak shaving and load shifting
    • Microgrid backup
    • Hybrid solar-storage projects
    • Residential community energy storage

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.
