product Category: Residential Solar Energy Storage

  • CNJC-48-200 48V 9.6kWh LFP Rack-Mounted Energy Storage Battery

    CNJC-48-200 48V 9.6kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-48-200 is a 48V 9.6kWh LFP rack-mounted battery for microgrid, C&I and telecom backup.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-48-200
    Spec 48V200Ah
    Config 15S1P
    Capacity 9.6kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 40.5-54VDC
    Std Voltage 48VDC
    Max Charge 100A
    Max Charge V 54V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×796×178mm
    Weight 74kg

    Applications

    • Microgrid backup
    • Small C&I storage
    • Telecom backup
    • Data rooms

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJC-51-50 51.2V 2.56kWh LFP Rack-Mounted Energy Storage Battery

    CNJC-51-50 51.2V 2.56kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-51-50 is a 51.2V 2.56kWh LFP rack-mounted battery for microgrid, telecom and residential backup.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-51-50
    Spec 51.2V50Ah
    Config 16S1P
    Capacity 2.56kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 50A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×484×88mm
    Weight 27kg

    Applications

    • Microgrid backup
    • Residential solar
    • Telecom backup
    • Off-grid

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJC-51-280 51.2V 14.336kWh LFP Rack-Mounted Energy Storage Battery

    CNJC-51-280 51.2V 14.336kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-51-280 is a 51.2V 14.336kWh LFP rack-mounted battery for C&I, microgrid and telecom applications.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-51-280
    Spec 51.2V280Ah
    Config 16S1P
    Capacity 14.336kWh
    Std Discharge 140A
    Max Discharge 140A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 140A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 405×750×230mm
    Weight 105kg

    Applications

    • C&I storage
    • Microgrid backup
    • Telecom backup
    • Data rooms

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJC-51-200 51.2V 10.24kWh LFP Rack-Mounted Energy Storage Battery

    CNJC-51-200 51.2V 10.24kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-51-200 is a 51.2V 10.24kWh LFP rack-mounted battery for microgrid, C&I and telecom backup.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-51-200
    Spec 51.2V200Ah
    Config 16S1P
    Capacity 10.24kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 100A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×796×178mm
    Weight 78kg

    Applications

    • Microgrid backup
    • Small C&I storage
    • Telecom backup
    • Data rooms

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJC-51-100 51.2V 5.12kWh LFP Rack-Mounted Energy Storage Battery

    CNJC-51-100 51.2V 5.12kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-51-100 is a 51.2V 5.12kWh LFP rack-mounted battery for microgrid, telecom and residential backup.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-51-100
    Spec 51.2V100Ah
    Config 16S1P
    Capacity 5.12kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 100A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×484×178mm
    Weight 45kg

    Applications

    • Microgrid backup
    • Residential solar
    • Small C&I backup
    • Off-grid

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJC-48-100 48V 4.8kWh LFP Rack-Mounted Energy Storage Battery

    CNJC-48-100 48V 4.8kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-48-100 is a 48V 4.8kWh LFP rack-mounted battery for microgrid, telecom and off-grid systems.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-48-100
    Spec 48V100Ah
    Config 15S1P
    Capacity 4.8kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 40.5-54VDC
    Std Voltage 48VDC
    Max Charge 50A
    Max Charge V 54V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×484×178mm
    Weight 41kg

    Applications

    • Microgrid backup
    • Residential solar
    • Telecom backup
    • Off-grid

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

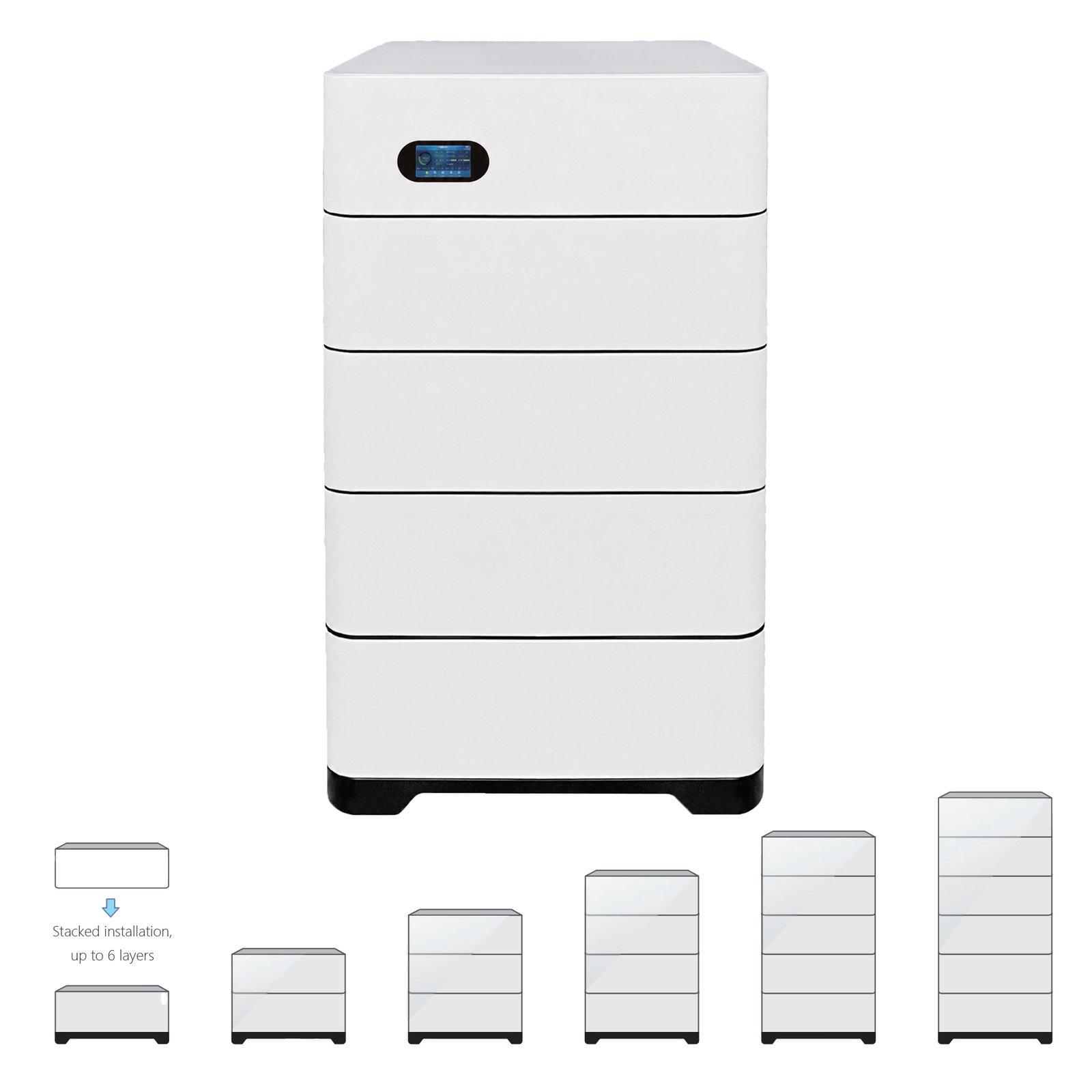

  • CNDC-51-100 51.2V 5.12kWh LFP Stackable Energy Storage Battery

    CNDC-51-100 51.2V 5.12kWh LFP Stackable Energy Storage Battery

    Product Overview

    CNDC-51-100 is a 51.2V 5.12kWh LFP stackable energy storage battery for modular home and off-grid backup.

    Product Features

    • Stackable modular design: Flexible stackable structure for capacity expansion.
    • Flexible capacity expansion: Add or remove modules to match project requirements.
    • Compact floor-standing installation: Suitable for indoor placement without wall mounting.
    • LFP chemistry for long cycle life: Designed for >6000 cycles.
    • BMS protection: Built-in battery management system.
    • Suitable for residential and off-grid backup systems.

    Technical Specifications

    Model CNDC-51-100
    Spec 51.2V100Ah
    Config 16S1P
    Capacity 5.12kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 50A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 520×450×200mm
    Weight 50kg

    Applications

    • Modular home solar
    • Off-grid backup
    • Small microgrid
    • Rural power

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNDC-48-100 48V 4.8kWh LFP Stackable Energy Storage Battery

    CNDC-48-100 48V 4.8kWh LFP Stackable Energy Storage Battery

    Product Overview

    CNDC-48-100 is a 48V 4.8kWh LFP stackable energy storage battery for modular residential solar and off-grid backup.

    Product Features

    • Stackable modular design: Flexible stackable structure for capacity expansion.
    • Flexible capacity expansion: Add or remove modules to match project requirements.
    • Compact floor-standing installation: Suitable for indoor placement without wall mounting.
    • LFP chemistry for long cycle life: Designed for >6000 cycles.
    • BMS protection: Built-in battery management system.
    • Suitable for residential and off-grid backup systems.

    Technical Specifications

    Model CNDC-48-100
    Spec 48V100Ah
    Config 15S1P
    Capacity 4.8kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 40.5-54VDC
    Std Voltage 48VDC
    Max Charge 50A
    Max Charge V 54V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 520×450×200mm
    Weight 46kg

    Applications

    • Modular home solar
    • Off-grid backup
    • Small microgrid
    • Rural power

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

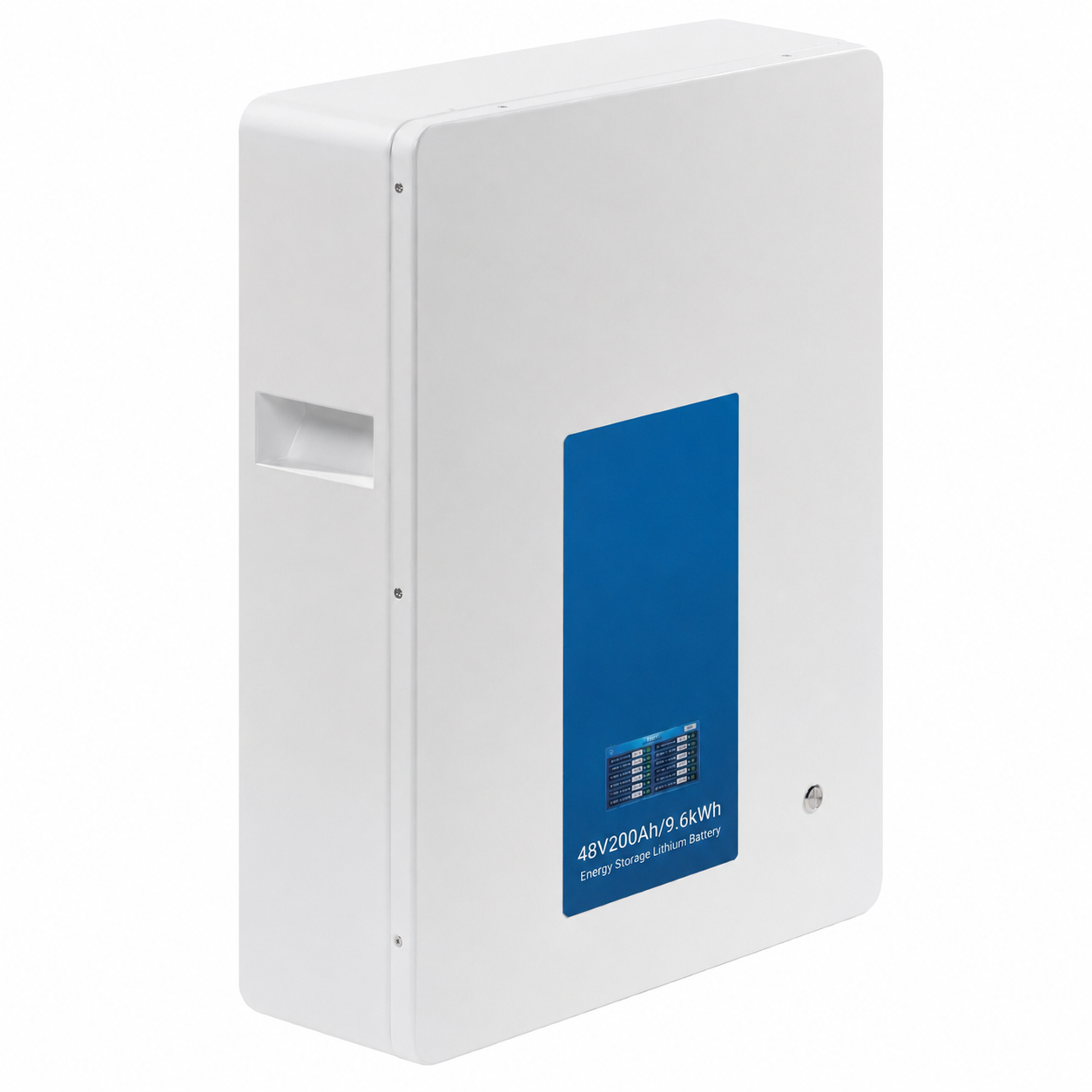

  • CNBC-48-200 48V 9.6kWh LFP Wall-Mounted Energy Storage Battery

    CNBC-48-200 48V 9.6kWh LFP Wall-Mounted Energy Storage Battery

    Product Overview

    CNBC-48-200 is a 48V 9.6kWh LFP wall-mounted energy storage battery for larger residential and small commercial backup.

    Product Features

    • Wall-mounted LFP battery design: Compact wall-mounted structure for space-saving home installation.
    • Space-saving installation: Designed for easy wall mounting in tight spaces.
    • BMS protection: Built-in BMS for voltage, temperature and current monitoring.
    • Natural cooling: Passive thermal management for quiet indoor operation.
    • Parallel expansion support: Supports parallel connection of multiple units.
    • Suitable for home solar storage and small backup power systems.

    Technical Specifications

    Model CNBC-48-200
    Spec 48V200Ah
    Config 15S1P
    Capacity 9.6kWh
    Std Discharge 100A
    Max Discharge 105A
    Voltage Range 40.5-54VDC
    Std Voltage 48VDC
    Max Charge 105A
    Max Charge V 54V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 540×800×170mm
    Weight 80kg

    Applications

    • Large home solar
    • Small commercial backup
    • Off-grid systems

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNBC-51-200 51.2V 10.24kWh LFP Wall-Mounted Energy Storage Battery

    CNBC-51-200 51.2V 10.24kWh LFP Wall-Mounted Energy Storage Battery

    Product Overview

    CNBC-51-200 is a 51.2V 10.24kWh LFP wall-mounted energy storage battery for large residential and small commercial backup.

    Product Features

    • Wall-mounted LFP battery design: Compact wall-mounted structure for space-saving home installation.
    • Space-saving installation: Designed for easy wall mounting in tight spaces.
    • BMS protection: Built-in BMS for voltage, temperature and current monitoring.
    • Natural cooling: Passive thermal management for quiet indoor operation.
    • Parallel expansion support: Supports parallel connection of multiple units.
    • Suitable for home solar storage and small backup power systems.

    Technical Specifications

    Model CNBC-51-200
    Spec 51.2V200Ah
    Config 16S1P
    Capacity 10.24kWh
    Std Discharge 100A
    Max Discharge 105A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 105A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 540×800×170mm
    Weight 85kg

    Applications

    • High-capacity home solar
    • Small commercial backup
    • Off-grid systems

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.
