product Category: Commercial & Industrial ESS

  • CNHC-96 96V 9.6kWh High-Voltage LFP Energy Storage Battery

    CNHC-96 96V 9.6kWh High-Voltage LFP Energy Storage Battery

    Product Overview

    CNHC-96 is a 96V 9.6kWh high-voltage LFP energy storage battery for solar energy storage, commercial backup power and microgrid systems.

    Product Features

    • High-voltage LFP battery design: Covers 96V to 768V platforms for flexible system voltage matching.
    • Modular scalable configuration: Supports up to 15 units in parallel for expanded capacity.
    • BMS protection and communication: RS485, RS232 and CAN with optional WiFi/4G/Bluetooth.
    • Natural cooling: Passive thermal management for reliable operation.
    • Flexible installation: Cabinet, rack or wall-mounted installation options.
    • Suitable for solar storage, C&I backup and microgrid applications.

    Technical Specifications

    Model CNHC-96
    Battery Type High-Voltage LFP Energy Storage Battery
    Battery Capacity 9.6kWh
    Operating Voltage Range 81-108V DC
    Std Discharge Current 50A
    Max Discharge Current 100A
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    Humidity 65±20%RH
    Altitude ≤2500m
    Cooling Natural Cooling
    Installation Cabinet / rack / wall
    Protection IP20
    Max Parallel 15PCS
    Comm RS485/RS232/CAN
    Warranty 5-10 years
    Certifications CE, RoHS, FCC, UN38.3, MSDS, ISO9001

    Applications

    • High-voltage solar storage
    • C&I backup power
    • Microgrid energy storage
    • Off-grid systems

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJC-51-280 51.2V 14.336kWh LFP Rack-Mounted Energy Storage Battery

    CNJC-51-280 51.2V 14.336kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-51-280 is a 51.2V 14.336kWh LFP rack-mounted battery for C&I, microgrid and telecom applications.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-51-280
    Spec 51.2V280Ah
    Config 16S1P
    Capacity 14.336kWh
    Std Discharge 140A
    Max Discharge 140A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 140A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 405×750×230mm
    Weight 105kg

    Applications

    • C&I storage
    • Microgrid backup
    • Telecom backup
    • Data rooms

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJC-51-200 51.2V 10.24kWh LFP Rack-Mounted Energy Storage Battery

    CNJC-51-200 51.2V 10.24kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-51-200 is a 51.2V 10.24kWh LFP rack-mounted battery for microgrid, C&I and telecom backup.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-51-200
    Spec 51.2V200Ah
    Config 16S1P
    Capacity 10.24kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 100A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×796×178mm
    Weight 78kg

    Applications

    • Microgrid backup
    • Small C&I storage
    • Telecom backup
    • Data rooms

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

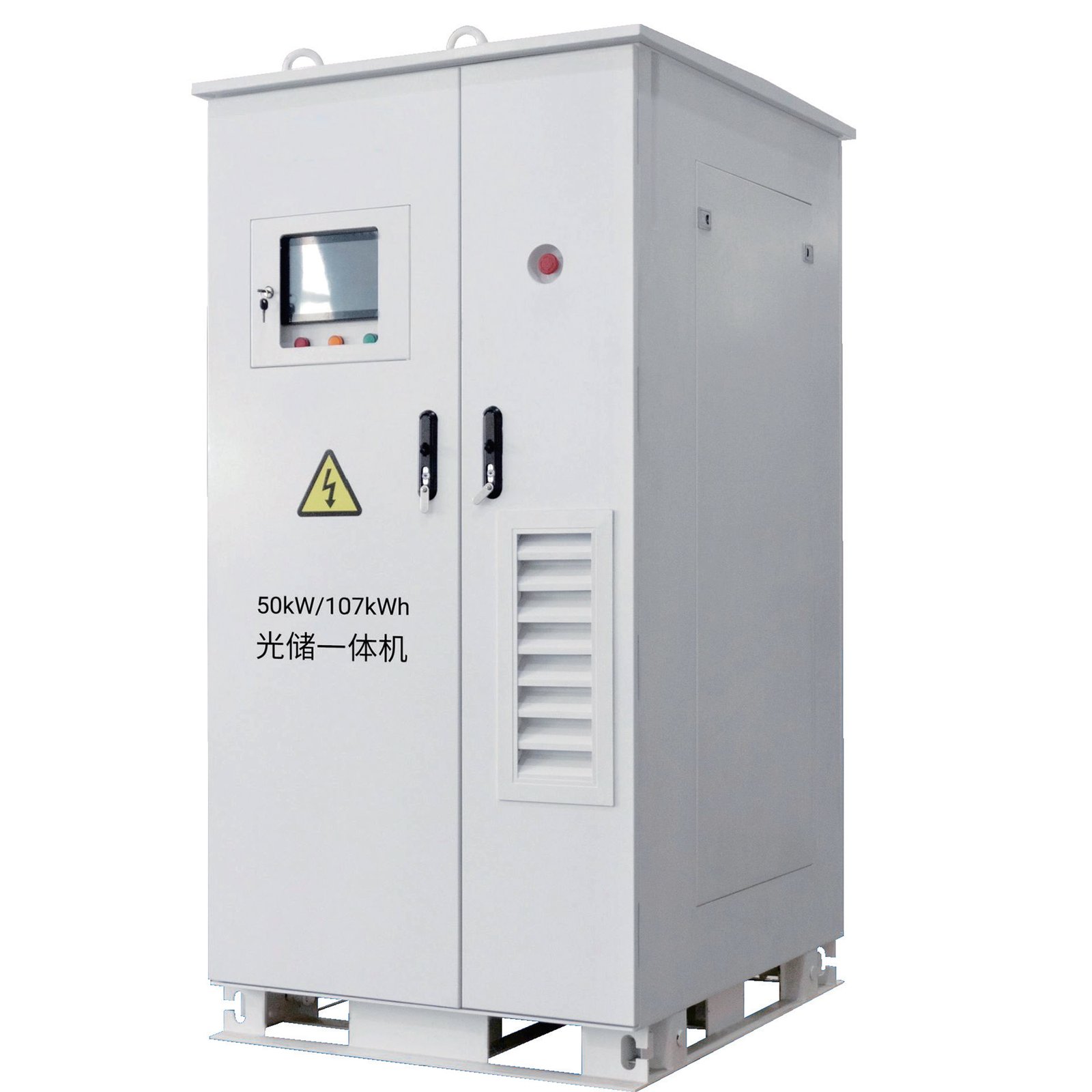

  • CNGC-50 50kW 107kWh Integrated Solar-Storage LFP ESS Cabinet

    CNGC-50 50kW 107kWh Integrated Solar-Storage LFP ESS Cabinet

    Product Overview

    CNGC-50 is a 50kW/107kWh integrated solar-storage LFP ESS cabinet combining battery system, inverter, BMS, EMS, thermal management and fire protection for commercial and industrial solar energy storage, peak shaving and backup power applications.

    Product Features

    • Integrated solar-storage cabinet: Combines LFP battery, inverter, BMS, EMS, thermal management and fire protection.
    • Grid-connected and off-grid hybrid operation: Supports grid-connected, off-grid and hybrid switching for flexible energy management.
    • High system efficiency: Up to 97% system efficiency with scalable power from 20kW to 50kW.
    • PV-ready design: Supports optional PV module integration for solar-plus-storage projects.
    • Local control interface: Built-in local touchscreen for system monitoring and configuration.
    • IP54 outdoor cabinet: Suitable for commercial and industrial outdoor installation.
    • Modular PACK design: Scalable LFP battery configuration for different capacity requirements.

    Technical Specifications

    Model CNGC-50
    System Specification 50kW / 107kWh
    System Battery Voltage 716V
    Battery Voltage Range 582-806V DC
    Battery Type LFP 3.2V / 150Ah
    Single PACK Capacity 102.4V150Ah / 15.36kWh
    System PACK Quantity 7PCS
    System Total Energy 107kWh
    Inverter Rated Power 50kW
    Max PV Input Power 65kW
    Charge/Discharge Rate >0.5C
    Rated Grid Voltage 380V AC
    Grid Frequency 50/60Hz ±5Hz
    Battery Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Charge/Discharge Switching Time ≤0.5s
    System Efficiency up to 97%, DOD 90%
    Thermal Management Intelligent air cooling
    Fire Protection PACK-level aerosol / Novec 1230
    Control Local
    Operation Mode Grid-connected / off-grid / hybrid
    Communication CAN / RS485 / WiFi
    Access Mode AC side connection / PV module optional
    Operating Temperature 0°C to +50°C
    Storage Temperature -20°C to +60°C
    Protection Grade IP54
    Dimensions 1328 × 1445 × 1960 mm
    Weight approx. 1200 kg

    Applications

    • Solar self-consumption
    • Commercial and industrial ESS
    • Peak shaving and load shifting
    • Microgrid backup
    • Hybrid solar-storage projects
    • Industrial park energy storage

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

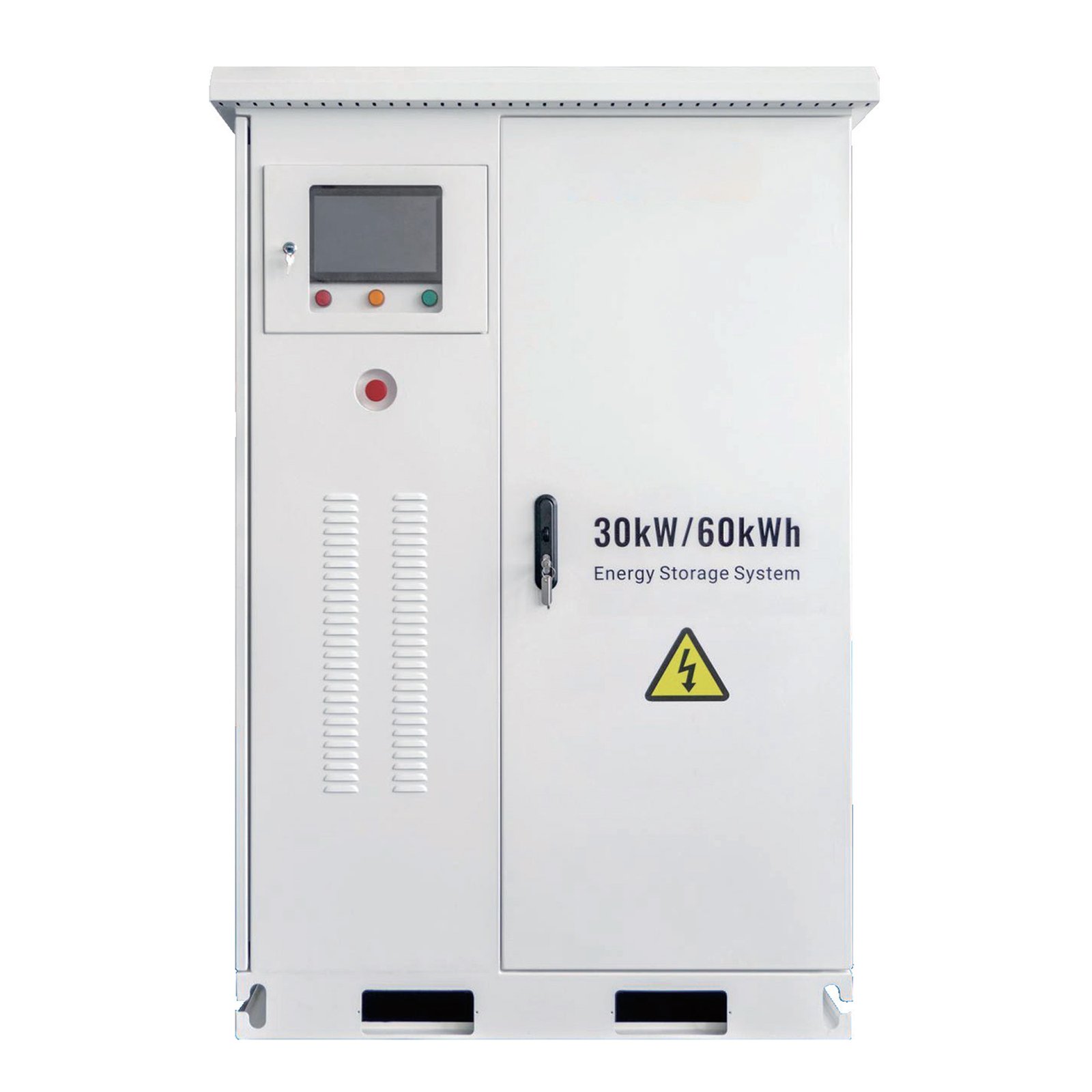

  • CNGC-30 30kW 61.44kWh Integrated Solar-Storage LFP ESS Cabinet

    CNGC-30 30kW 61.44kWh Integrated Solar-Storage LFP ESS Cabinet

    Product Overview

    CNGC-30 is a 30kW/61.44kWh integrated solar-storage LFP ESS cabinet combining battery system, inverter, BMS, EMS, thermal management and fire protection for commercial and residential solar energy storage, backup power and microgrid applications.

    Product Features

    • Integrated solar-storage cabinet: Combines LFP battery, inverter, BMS, EMS, thermal management and fire protection.
    • Grid-connected and off-grid hybrid operation: Supports grid-connected, off-grid and hybrid switching for flexible energy management.
    • High system efficiency: Up to 97% system efficiency with scalable power from 20kW to 50kW.
    • PV-ready design: Supports optional PV module integration for solar-plus-storage projects.
    • Local control interface: Built-in local touchscreen for system monitoring and configuration.
    • IP54 outdoor cabinet: Suitable for commercial and industrial outdoor installation.
    • Modular PACK design: Scalable LFP battery configuration for different capacity requirements.

    Technical Specifications

    Model CNGC-30
    System Specification 30kW / 61.44kWh
    System Battery Voltage 614V
    Battery Voltage Range 490-690V DC
    Battery Type LFP 3.2V / 100Ah
    Single PACK Capacity 102.4V100Ah / 10.24kWh
    System PACK Quantity 6PCS
    System Total Energy 61.44kWh
    Inverter Rated Power 30kW
    Max PV Input Power 39kW
    Charge/Discharge Rate >0.5C
    Rated Grid Voltage 380V AC
    Grid Frequency 50/60Hz ±5Hz
    Battery Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Charge/Discharge Switching Time ≤0.5s
    System Efficiency up to 97%, DOD 90%
    Thermal Management Intelligent air cooling
    Fire Protection PACK-level aerosol / Novec 1230
    Control Local
    Operation Mode Grid-connected / off-grid / hybrid
    Communication CAN / RS485 / WiFi
    Access Mode AC side connection / PV module optional
    Operating Temperature 0°C to +50°C
    Storage Temperature -20°C to +60°C
    Protection Grade IP54
    Dimensions 1175 × 1260 × 1710 mm
    Weight approx. 950 kg

    Applications

    • Solar self-consumption
    • Commercial and industrial ESS
    • Peak shaving and load shifting
    • Microgrid backup
    • Hybrid solar-storage projects
    • Residential community energy storage

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNGC-20 20kW 51.2kWh Integrated Solar-Storage LFP ESS Cabinet

    CNGC-20 20kW 51.2kWh Integrated Solar-Storage LFP ESS Cabinet

    Product Overview

    CNGC-20 is a 20kW/51.2kWh integrated solar-storage LFP ESS cabinet combining battery system, inverter, BMS, EMS, thermal management and fire protection for commercial and residential solar energy storage, backup power and microgrid applications.

    Product Features

    • Integrated solar-storage cabinet: Combines LFP battery, inverter, BMS, EMS, thermal management and fire protection.
    • Grid-connected and off-grid hybrid operation: Supports grid-connected, off-grid and hybrid switching for flexible energy management.
    • High system efficiency: Up to 97% system efficiency with scalable power from 20kW to 50kW.
    • PV-ready design: Supports optional PV module integration for solar-plus-storage projects.
    • Local control interface: Built-in local touchscreen for system monitoring and configuration.
    • IP54 outdoor cabinet: Suitable for commercial and industrial outdoor installation.
    • Modular PACK design: Scalable LFP battery configuration for different capacity requirements.

    Technical Specifications

    Model CNGC-20
    System Specification 20kW / 51.2kWh
    System Battery Voltage 512V
    Battery Voltage Range 432-576V DC
    Battery Type LFP 3.2V / 100Ah
    Single PACK Capacity 102.4V100Ah / 10.24kWh
    System PACK Quantity 5PCS
    System Total Energy 51.2kWh
    Inverter Rated Power 20kW
    Max PV Input Power 26kW
    Charge/Discharge Rate >0.5C
    Rated Grid Voltage 380V AC
    Grid Frequency 50/60Hz ±5Hz
    Battery Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Charge/Discharge Switching Time ≤0.5s
    System Efficiency up to 97%, DOD 90%
    Thermal Management Intelligent air cooling
    Fire Protection PACK-level aerosol / Novec 1230
    Control Local
    Operation Mode Grid-connected / off-grid / hybrid
    Communication CAN / RS485 / WiFi
    Access Mode AC side connection / PV module optional
    Operating Temperature 0°C to +50°C
    Storage Temperature -20°C to +60°C
    Protection Grade IP54
    Dimensions 1175 × 1260 × 1510 mm
    Weight approx. 850 kg

    Applications

    • Solar self-consumption
    • Commercial and industrial ESS
    • Peak shaving and load shifting
    • Microgrid backup
    • Hybrid solar-storage projects
    • Residential community energy storage

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

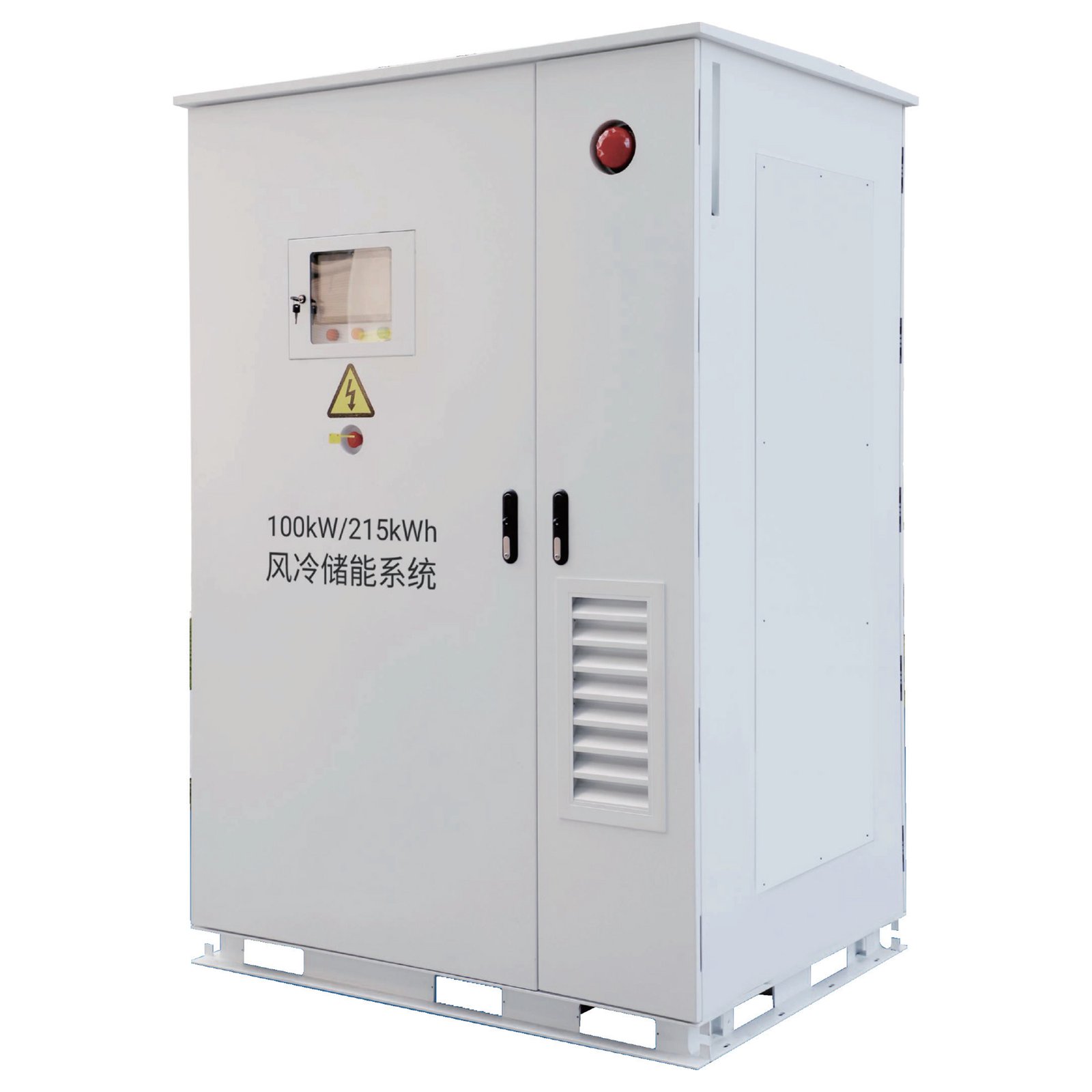

  • CNFC-215 100kW 215kWh Air Cooling LFP ESS Cabinet

    CNFC-215 100kW 215kWh Air Cooling LFP ESS Cabinet

    Product Overview

    CNFC-215 is a 100kW/215kWh air cooling LFP energy storage cabinet designed for commercial and industrial ESS applications. It integrates battery system, BMS, thermal management, fire protection, energy control and cabinet structure for peak shaving, backup power, microgrid and solar-plus-storage projects.

    Product Features

    • Air cooling LFP ESS cabinet: Integrates battery system, BMS, thermal management, fire protection and energy control.
    • Grid-connected and off-grid operation: Supports grid-connected and off-grid modes for flexible deployment.
    • 100kW rated power: Designed for commercial and industrial peak shaving, backup power and microgrid applications.
    • Intelligent air cooling: Active thermal management maintains stable battery temperature for reliable operation.
    • IP54 outdoor cabinet: Weather-resistant enclosure for outdoor installation.
    • Flexible access: AC direct connection with optional PV module integration.

    Technical Specifications

    Model CNFC-215
    Product Specification 768V280Ah
    PACK Combination 240S1P
    PACK Quantity 15PCS
    Battery System Capacity 215kWh
    Battery Voltage Range 636-864V DC
    Battery Type LFP 3.2V / 280Ah
    Rated Power 100kW
    Max Output Power 100kW
    Rated Grid Voltage 380V AC
    Rated Grid Frequency 50/60Hz ±5Hz
    Battery Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Charge/Discharge Rate ≤0.5C
    System Efficiency up to 86% at 100kW
    Charge/Discharge Switching Time ≤200ms
    Thermal Management Intelligent air cooling
    Fire Protection PACK-level aerosol / Novec 1230 optional
    UPS 10kVA
    Control Local / Remote
    Operation Mode Grid-connected / off-grid
    Communication CAN / Ethernet / RS485 / 4G optional
    Access Mode AC direct connection / PV module optional
    Operating Temperature 0°C to +50°C
    Storage Temperature -20°C to +60°C
    Humidity 0-95%RH
    Protection Grade IP54
    Dimensions 1550 × 1292.5 × 2186 mm
    Weight approx. 2800 kg

    Applications

    • Commercial and industrial energy storage
    • Peak shaving and load shifting
    • Microgrid backup power
    • Solar-plus-storage projects
    • Factory backup power
    • Industrial park energy management

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.
