product Category: Lithium Energy Storage Products

  • CNJZ-5015 5.015MWh Containerized LFP Battery Energy Storage System

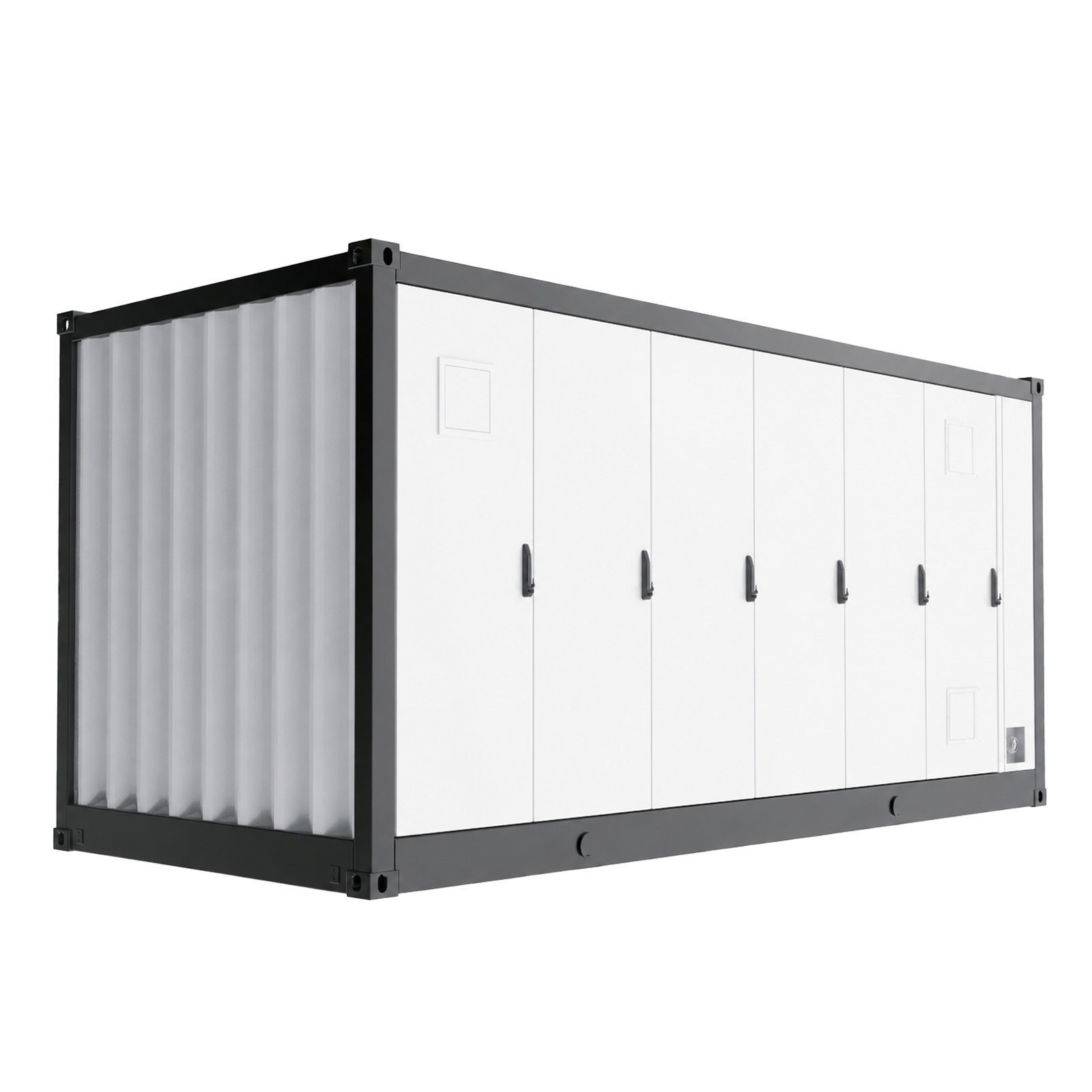

    CNJZ-5015 5.015MWh Containerized LFP Battery Energy Storage System

    Product Overview

    CNJZ-5015 is a 5.015MWh containerized LFP battery energy storage system for utility-scale storage, C&I storage and renewable energy integration.

    Product Features

    • Containerized LFP BESS: Complete MWh-level battery energy storage system in standard container.
    • Liquid cooling thermal management: Efficient thermal control for stable battery performance.
    • Integrated fire protection: Aerosol and perfluorohexanone fire suppression system.
    • Grid-connected and off-grid capable: Supports utility-scale and large C&I applications.
    • IP55 outdoor container: Weather-resistant for outdoor installation in varied environments.
    • Comprehensive communication: CAN, RS485 and Ethernet for system monitoring and control.
    • Suitable for utility-scale, grid-side and renewable integration projects.

    Technical Specifications

    Model CNJZ-5015
    Rated Energy 5015kWh
    Cell Capacity 314Ah
    Nominal Voltage 1331.2V
    System Config 10P416S
    Rated Power 2508kW
    Rated Current 1884A
    Voltage Range 1164.8-1497.6V
    Efficiency 95% at 0.5P, 25±3°C
    Aux Power AC 380V ±5%, 50Hz
    Thermal Mgmt Liquid cooling
    Fire Protection Aerosol + perfluorohexanone
    Operating Temp -30°C to +55°C
    Protection IP55
    Altitude <5000m, derating above 3000m
    Comm CAN / RS485 / Ethernet
    Dimensions 6058 × 2896 × 2438 mm
    Weight approx. 43t

    Applications

    • Utility-scale BESS
    • Grid-side storage
    • Renewable integration
    • Large C&I

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJZ-4073 4.073MWh Containerized LFP Battery Energy Storage System

    CNJZ-4073 4.073MWh Containerized LFP Battery Energy Storage System

    Product Overview

    CNJZ-4073 is a 4.073MWh containerized LFP battery energy storage system for utility-scale storage, C&I storage and renewable integration.

    Product Features

    • Containerized LFP BESS: Complete MWh-level battery energy storage system in standard container.
    • Liquid cooling thermal management: Efficient thermal control for stable battery performance.
    • Integrated fire protection: Aerosol and perfluorohexanone fire suppression system.
    • Grid-connected and off-grid capable: Supports utility-scale and large C&I applications.
    • IP55 outdoor container: Weather-resistant for outdoor installation in varied environments.
    • Comprehensive communication: CAN, RS485 and Ethernet for system monitoring and control.
    • Suitable for utility-scale, grid-side and renewable integration projects.

    Technical Specifications

    Model CNJZ-4073
    Rated Energy 4073kWh
    Cell Capacity 306Ah
    Nominal Voltage 1331.2V
    System Config 10P416S
    Rated Power 2035kW
    Rated Current 1530A
    Voltage Range 1164.8-1497.6V
    Efficiency 95% at 0.5P, 25±3°C
    Aux Power AC 380V ±5%, 50Hz
    Thermal Mgmt Liquid cooling
    Fire Protection Aerosol + perfluorohexanone
    Operating Temp -30°C to +55°C
    Protection IP55
    Altitude <5000m, derating above 3000m
    Comm CAN / RS485 / Ethernet
    Dimensions 6058 × 2896 × 2438 mm
    Weight approx. 37t

    Applications

    • Utility-scale BESS
    • Grid-side storage
    • Renewable integration
    • Large C&I

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJZ-3440 3.44MWh Containerized LFP Battery Energy Storage System

    CNJZ-3440 3.44MWh Containerized LFP Battery Energy Storage System

    Product Overview

    CNJZ-3440 is a 3.44MWh containerized LFP battery energy storage system designed for utility-scale battery storage, large commercial and industrial energy storage, renewable energy integration and grid-support applications.

    Product Features

    • Containerized LFP BESS: Complete MWh-level battery energy storage system in standard container.
    • Liquid cooling thermal management: Efficient thermal control for stable battery performance.
    • Integrated fire protection: Aerosol and perfluorohexanone fire suppression system.
    • Grid-connected and off-grid capable: Supports utility-scale and large C&I applications.
    • IP55 outdoor container: Weather-resistant for outdoor installation in varied environments.
    • Comprehensive communication: CAN, RS485 and Ethernet for system monitoring and control.
    • Suitable for utility-scale, grid-side and renewable integration projects.

    Technical Specifications

    Model CNJZ-3440
    Rated Energy 3440kWh
    Cell Capacity 280Ah
    Nominal Voltage 1228.8V
    System Config 10P384S
    Rated Power 3440kW
    Rated Current 2800A
    Voltage Range 960-1401.6V
    Efficiency 95% at 1P, 25±5°C
    Aux Power AC 380V ±5%, 50Hz
    Thermal Mgmt Liquid cooling
    Fire Protection Aerosol + perfluorohexanone
    Operating Temp -30°C to +55°C
    Storage Temp -20°C to +45°C
    Humidity <95% non-condensing
    Protection IP55
    Altitude <5000m, derating above 3000m
    Comm CAN / RS485 / Ethernet
    Pollution Level II
    Corrosion C4
    Dimensions 6058 × 2896 × 2438 mm
    Weight approx. 36t

    Applications

    • Utility-scale battery storage
    • Grid-side ESS
    • Renewable integration
    • Large C&I storage

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNHC-768 768V 76.8kWh High-Voltage LFP Energy Storage Battery

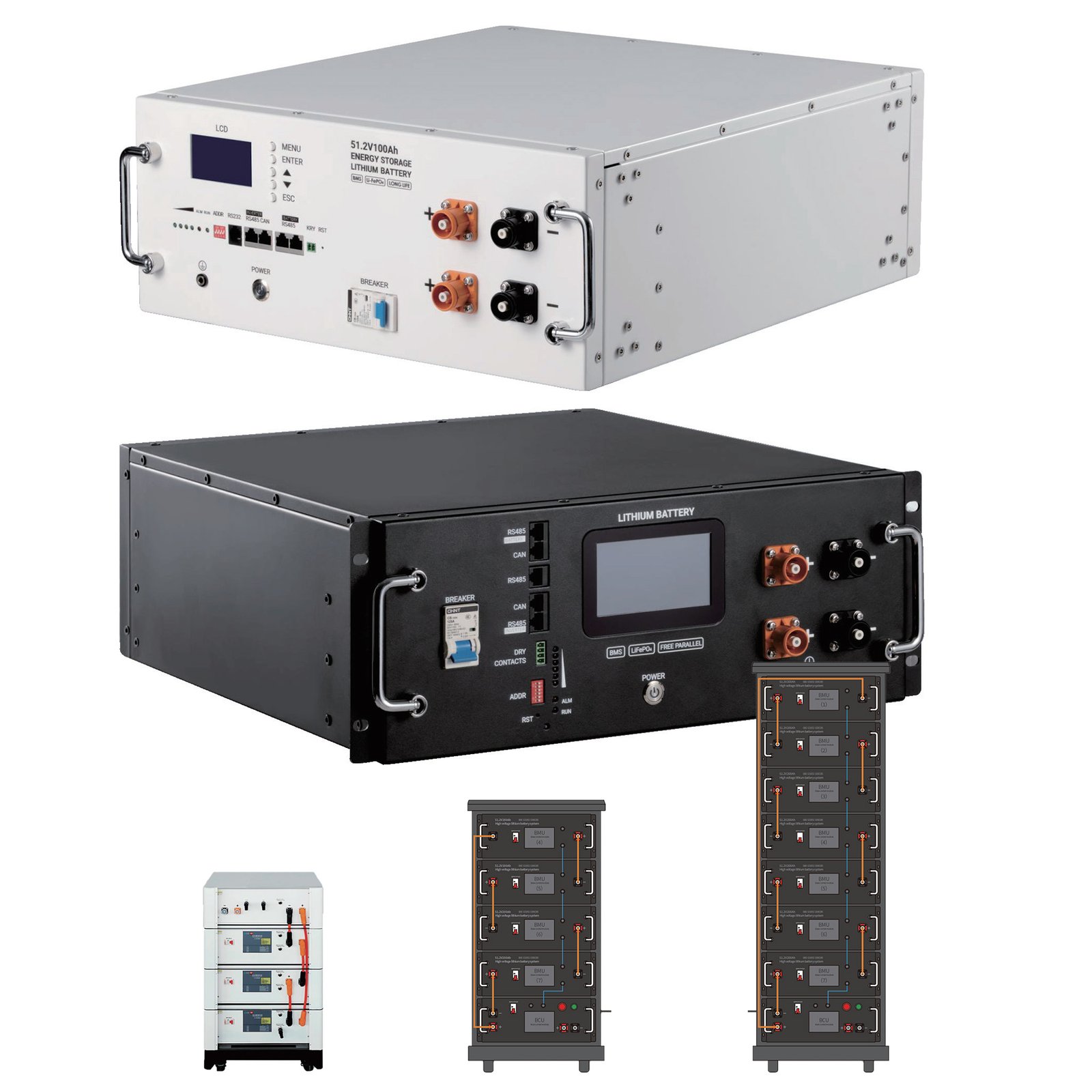

    CNHC-768 768V 76.8kWh High-Voltage LFP Energy Storage Battery

    Product Overview

    CNHC-768 is a 768V 76.8kWh high-voltage LFP energy storage battery for solar storage, C&I backup and microgrid systems.

    Product Features

    • High-voltage LFP battery design: Covers 96V to 768V platforms for flexible system voltage matching.
    • Modular scalable configuration: Supports up to 15 units in parallel for expanded capacity.
    • BMS protection and communication: RS485, RS232 and CAN with optional WiFi/4G/Bluetooth.
    • Natural cooling: Passive thermal management for reliable operation.
    • Flexible installation: Cabinet, rack or wall-mounted installation options.
    • Suitable for solar storage, C&I backup and microgrid applications.

    Technical Specifications

    Model CNHC-768
    Battery Capacity 76.8kWh
    Operating Voltage Range 648-864V DC
    Max Parallel 15PCS
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    Protection IP20
    Cooling Natural Cooling

    Applications

    • High-voltage solar
    • C&I backup
    • Microgrid
    • Modular ESS

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNHC-512 512V 51.2kWh High-Voltage LFP Energy Storage Battery

    CNHC-512 512V 51.2kWh High-Voltage LFP Energy Storage Battery

    Product Overview

    CNHC-512 is a 512V 51.2kWh high-voltage LFP energy storage battery for solar storage, C&I backup and microgrid systems.

    Product Features

    • High-voltage LFP battery design: Covers 96V to 768V platforms for flexible system voltage matching.
    • Modular scalable configuration: Supports up to 15 units in parallel for expanded capacity.
    • BMS protection and communication: RS485, RS232 and CAN with optional WiFi/4G/Bluetooth.
    • Natural cooling: Passive thermal management for reliable operation.
    • Flexible installation: Cabinet, rack or wall-mounted installation options.
    • Suitable for solar storage, C&I backup and microgrid applications.

    Technical Specifications

    Model CNHC-512
    Battery Capacity 51.2kWh
    Operating Voltage Range 432-576V DC
    Max Parallel 15PCS
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    Protection IP20
    Cooling Natural Cooling

    Applications

    • High-voltage solar
    • C&I backup
    • Microgrid
    • Modular ESS

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNHC-384 384V 38.4kWh High-Voltage LFP Energy Storage Battery

    CNHC-384 384V 38.4kWh High-Voltage LFP Energy Storage Battery

    Product Overview

    CNHC-384 is a 384V 38.4kWh high-voltage LFP energy storage battery for solar storage, C&I backup and microgrid systems.

    Product Features

    • High-voltage LFP battery design: Covers 96V to 768V platforms for flexible system voltage matching.
    • Modular scalable configuration: Supports up to 15 units in parallel for expanded capacity.
    • BMS protection and communication: RS485, RS232 and CAN with optional WiFi/4G/Bluetooth.
    • Natural cooling: Passive thermal management for reliable operation.
    • Flexible installation: Cabinet, rack or wall-mounted installation options.
    • Suitable for solar storage, C&I backup and microgrid applications.

    Technical Specifications

    Model CNHC-384
    Battery Capacity 38.4kWh
    Operating Voltage Range 324-432V DC
    Max Parallel 15PCS
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    Protection IP20
    Cooling Natural Cooling

    Applications

    • High-voltage solar
    • C&I backup
    • Microgrid
    • Modular ESS

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNHC-240 240V 24kWh High-Voltage LFP Energy Storage Battery

    CNHC-240 240V 24kWh High-Voltage LFP Energy Storage Battery

    Product Overview

    CNHC-240 is a 240V 24kWh high-voltage LFP energy storage battery for solar storage, C&I backup and microgrid systems.

    Product Features

    • High-voltage LFP battery design: Covers 96V to 768V platforms for flexible system voltage matching.
    • Modular scalable configuration: Supports up to 15 units in parallel for expanded capacity.
    • BMS protection and communication: RS485, RS232 and CAN with optional WiFi/4G/Bluetooth.
    • Natural cooling: Passive thermal management for reliable operation.
    • Flexible installation: Cabinet, rack or wall-mounted installation options.
    • Suitable for solar storage, C&I backup and microgrid applications.

    Technical Specifications

    Model CNHC-240
    Battery Capacity 24kWh
    Operating Voltage Range 202.5-270V DC
    Max Parallel 15PCS
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    Protection IP20
    Cooling Natural Cooling

    Applications

    • High-voltage solar
    • C&I backup
    • Microgrid
    • Modular ESS

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJC-48-200 48V 9.6kWh LFP Rack-Mounted Energy Storage Battery

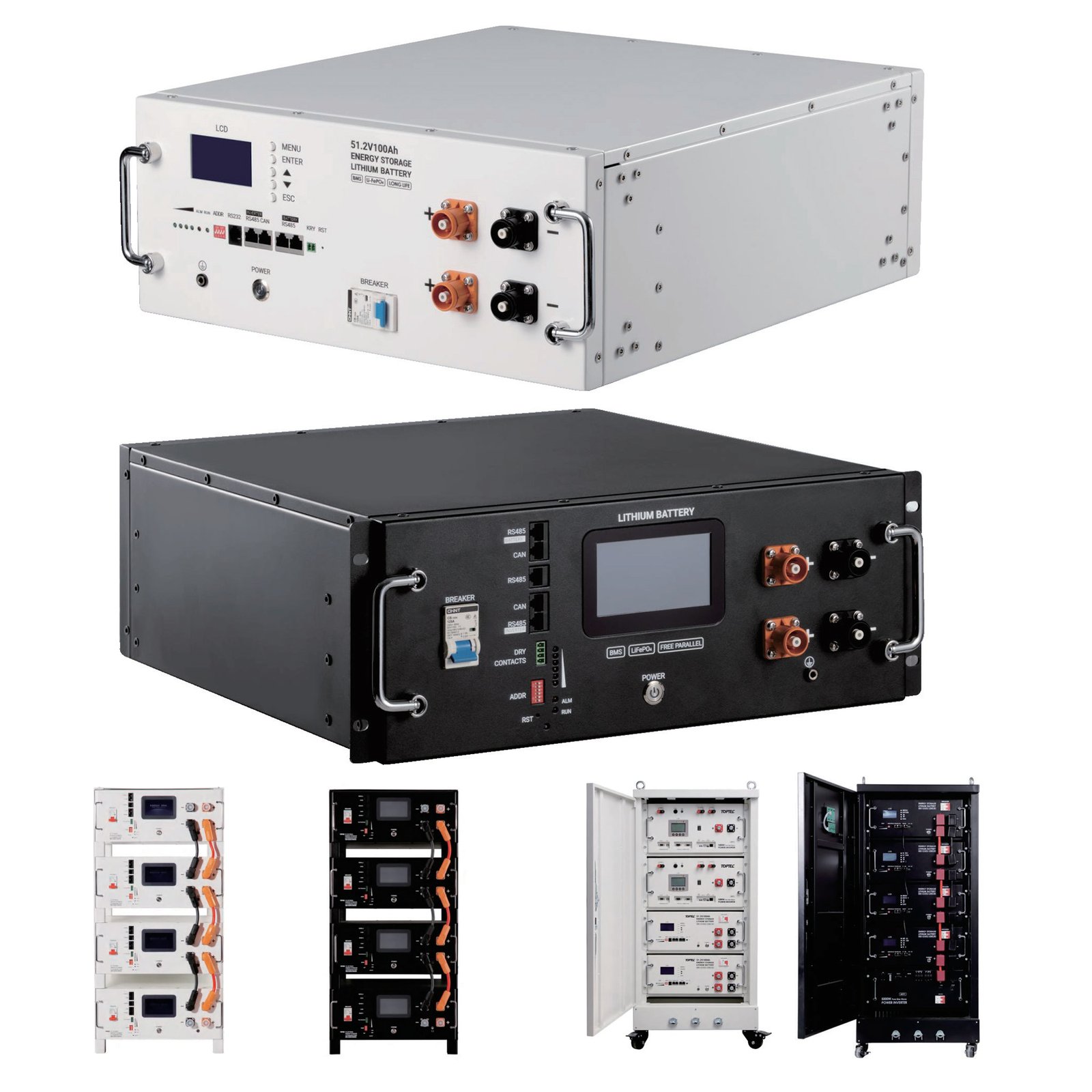

    CNJC-48-200 48V 9.6kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-48-200 is a 48V 9.6kWh LFP rack-mounted battery for microgrid, C&I and telecom backup.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-48-200
    Spec 48V200Ah
    Config 15S1P
    Capacity 9.6kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 40.5-54VDC
    Std Voltage 48VDC
    Max Charge 100A
    Max Charge V 54V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×796×178mm
    Weight 74kg

    Applications

    • Microgrid backup
    • Small C&I storage
    • Telecom backup
    • Data rooms

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNJC-51-50 51.2V 2.56kWh LFP Rack-Mounted Energy Storage Battery

    CNJC-51-50 51.2V 2.56kWh LFP Rack-Mounted Energy Storage Battery

    Product Overview

    CNJC-51-50 is a 51.2V 2.56kWh LFP rack-mounted battery for microgrid, telecom and residential backup.

    Product Features

    • Rack-mounted or cabinet-type design: Standard 19-inch rack form factor.
    • Standard cabinet installation: Compatible with standard telecom and IT racks.
    • Maximum parallel support up to 15 units: Expandable for larger capacity.
    • BMS protection and communication: RS485, RS232 and CAN for monitoring.
    • Natural cooling: Passive thermal management.
    • Suitable for telecom, microgrid and small C&I backup power.

    Technical Specifications

    Model CNJC-51-50
    Spec 51.2V50Ah
    Config 16S1P
    Capacity 2.56kWh
    Std Discharge 50A
    Max Discharge 100A
    Voltage Range 43.2-57.6VDC
    Std Voltage 51.2VDC
    Max Charge 50A
    Max Charge V 57.6V
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    IP IP20
    Cooling Natural Cooling
    Comm RS485/RS232/CAN
    Size 440×484×88mm
    Weight 27kg

    Applications

    • Microgrid backup
    • Residential solar
    • Telecom backup
    • Off-grid

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.

  • CNHC-192 192V 19.2kWh High-Voltage LFP Energy Storage Battery

    CNHC-192 192V 19.2kWh High-Voltage LFP Energy Storage Battery

    Product Overview

    CNHC-192 is a 192V 19.2kWh high-voltage LFP energy storage battery for solar storage, C&I backup and microgrid systems.

    Product Features

    • High-voltage LFP battery design: Covers 96V to 768V platforms for flexible system voltage matching.
    • Modular scalable configuration: Supports up to 15 units in parallel for expanded capacity.
    • BMS protection and communication: RS485, RS232 and CAN with optional WiFi/4G/Bluetooth.
    • Natural cooling: Passive thermal management for reliable operation.
    • Flexible installation: Cabinet, rack or wall-mounted installation options.
    • Suitable for solar storage, C&I backup and microgrid applications.

    Technical Specifications

    Model CNHC-192
    Battery Capacity 19.2kWh
    Operating Voltage Range 121.5-216V DC
    Max Parallel 15PCS
    Cycle Life >6000 cycles at 80% DoD, 25°C, 0.5C, energy retention >80%
    Temp 0°C to +40°C
    Protection IP20
    Cooling Natural Cooling

    Applications

    • High-voltage solar
    • C&I backup
    • Microgrid
    • Modular ESS

    Why Choose Cane Energy

    Cane Energy provides LFP battery and energy storage solutions for residential, commercial and industrial applications. The energy storage product range covers low-voltage home storage, high-voltage ESS battery cabinets, integrated C&I ESS cabinets and containerized BESS systems.

    Products are designed with LFP chemistry, BMS protection, thermal management and fire protection options. The product range supports residential solar storage, commercial peak shaving, microgrid, off-grid backup, utility-scale storage and renewable integration applications.

    Customization is available according to project voltage, capacity, installation environment and application requirements. Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, RoHS, FCC, UN38.3, MSDS and ISO9001.
