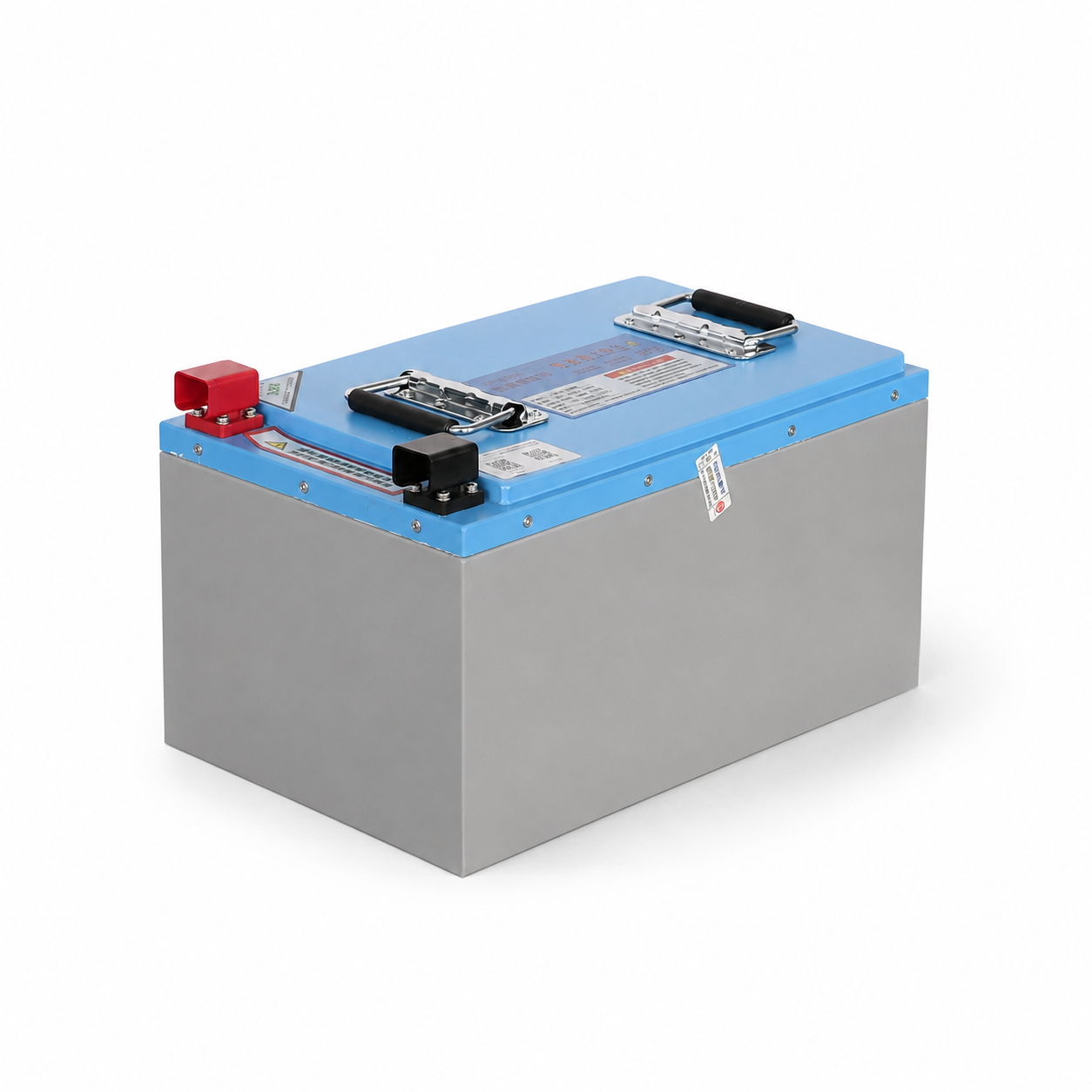

Product Overview
Cane Energy 76.8V90Ah is a LiFePO4 traction battery pack designed for electric tricycles, low-speed electric vehicles, industrial mobility platforms and energy power applications. It uses lithium iron phosphate, LiFePO4, as the cathode material and carbon-based anode material to provide stable high-power and high-energy output for daily transportation, commercial delivery and special working vehicles.
This model features a nominal voltage of 76.8V and a nominal capacity of 90Ah. With a continuous discharge current of 120A and a cycle life of 100% DoD 3500 cycles under specified test conditions, it offers reliable power for sustained commercial operations.
The 76.8V platform features a higher-voltage system, often used where stronger climbing ability, higher driving speed or higher motor power is required. It is suitable for heavy-duty tricycles, field vehicles, industrial electric vehicles, high-power working vehicles and large low-speed vehicle platforms.
Product Features
- Excellent safety performance: LiFePO4 chemistry has a stable phosphate bond structure. Its thermal runaway temperature is generally above 500 C, and it offers strong safety performance under demanding conditions such as puncture, extrusion or short-circuit tests.
- Long cycle life: LiFePO4 batteries generally support more than 2000-3000 deep cycles, and high-quality cells may reach even higher cycle performance under specified test conditions. For Cane Energy product specifications, this model is rated for 100% DoD 3500 cycles under specified test conditions, helping reduce long-term battery replacement costs.
- Environmentally friendly chemistry: LiFePO4 batteries contain no lead, cadmium or mercury, and do not rely on rare metals such as cobalt, making them a cleaner battery solution compared with traditional lead-acid batteries and some cobalt-based lithium battery chemistries.
- No memory effect: The battery can be charged and used flexibly without requiring full discharge before recharging, making it suitable for daily commercial vehicle operation and frequent charging scenarios.
- Weight and volume advantages: Compared with traditional lead-acid batteries, LiFePO4 batteries offer approximately 2-3 times higher energy density, and the weight can be around one-third of lead-acid batteries under similar capacity conditions.
- BMS protection: Built-in battery management system helps monitor cell voltage, temperature, and current for safer battery operation.
- Customizable pack design: Supports flexible battery pack configurations for different vehicle layouts, mounting requirements, and capacity combinations.
- Suitable for high-frequency vehicle operation: Designed for daily commercial use with stable discharge performance throughout the duty cycle.
Technical Specifications
| Model | 76.8V90Ah |
|---|---|
| Nominal Voltage | 76.8V |
| Nominal Capacity | 90Ah |
| Battery Type | LiFePO4 Traction Battery Pack |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Dimension | 420 x 332 x 230 mm |
| Net Weight | 49 kg |
| Continuous Current | 120A |
| Cycle Life | 100% DoD 3500 cycles |
| Recommended Application | heavy-duty electric tricycles, agricultural vehicles, golf carts and sightseeing vehicles |
Applications
The 76.8V90Ah LiFePO4 Traction Battery Pack provides reliable traction power with stable high-power and high-energy output for daily transportation, commercial delivery and special working vehicles.
This model falls into the medium-duty heavy-load and all-day operation application category. This capacity range is designed for heavy-load, high-frequency commercial and industrial use, with energy level around 6-8 kWh depending on voltage and capacity. Typical applications include:
- Heavy-duty electric tricycles and agricultural electric tricycles
- Golf carts and multi-seat sightseeing vehicles
- Micro electric cargo trucks and flatbed transfer vehicles
- Warehouse, airport and logistics vehicles
- Heavy-duty sanitation garbage collection vehicles with hydraulic lifting or dumping functions
Selection Guide
| Model Class | Capacity Range | Core Advantage | Best-Fit Vehicles |
|---|---|---|---|
| Lightweight Type | 40Ah-50Ah | Compact size, lightweight design and cost-friendly configuration | Express delivery tricycles, light inspection vehicles, mobility scooters |
| Balanced Type | 58Ah | Long and narrow pack design for better chassis layout and balanced driving range | Sanitation cleaning vehicles, medium cargo tricycles, industrial AGV platforms |
| Medium-Duty Type | 90Ah-110Ah | Balanced power and long runtime for all-day operation | Heavy-duty agricultural tricycles, 8-11 seat sightseeing vehicles, micro electric cargo vehicles |
| Heavy-Duty / Industrial Type | 150Ah-180Ah | Long endurance and high-power output for demanding operation | Electric forklifts, aerial work platforms, special working vehicles, mobile power systems |
Why Choose Cane Energy
Cane Energy is a modern battery manufacturer integrating research, production, and sales of lead-acid batteries, LiFePO4 power batteries, energy storage batteries, chargers, and controllers. Founded in 2003, the company has built strong manufacturing and engineering capabilities to support global B2B customers in electric mobility and new energy applications.
With a large-scale production base, automated manufacturing equipment, and an experienced engineering team, Cane Energy supports stable production, quality control, and batch delivery for distributors, vehicle manufacturers, and OEM/ODM partners. The company has an annual production capacity of up to 20 million sets of electric vehicle batteries and 20 million sets of battery plates, providing a solid foundation for large-volume cooperation.
For LiFePO4 traction battery packs, Cane Energy operates automated intelligent battery pack assembly lines with incoming cell capacity grading, precise cell matching, finished product aging testing, and comprehensive capacity verification to ensure consistent quality and reliable batch delivery. For international buyers, Cane Energy supports export-oriented cooperation with quality management systems and product certification experience, including ISO management systems, CE, and UN38.3 certification support for global market compliance.
